UPVC Pipes & Fittings

Name: uPVC Pipe Fittings
Brand: Nirmaan Pipes
Price: 8.00 INR
Availability: InStock
Rating: 4.6 (180 reviews)

Nirmaan UPVC Pipes meet the high standards of ASTM-D-1785 and work perfectly with Nirmaan UPVC Fittings that meet ASTM-D-2467. These pipes are widely used for carrying water and other liquids in homes, businesses, and factories.

Nirmaan UPVC Pipes

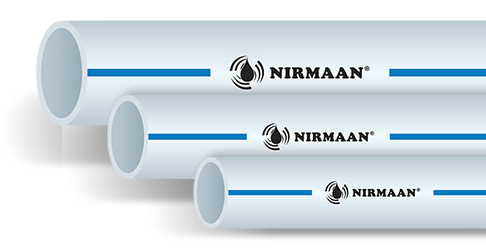

Schedule-40 - Light Duty

Sizes (in inches)	Schd. 40 (3 mtrs)	Schd. 40 (6 mtrs)
½"	50	25
¾"	25	25
1"	25	25
1.¼"	15	15
1 ½"	10	10
2"	10	10
2.½"	10	10
3”	5	5
4”	5	5

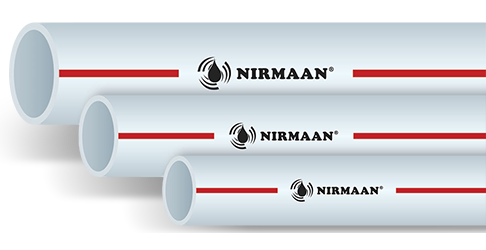

Schedule-80 - Heavy Duty

Sizes (in inches)	Sch-80 (3 mtr)	Sch-80 (6 mtr)
½"	50	25
¾"	25	25
1"	25	25
1.¼"	15	15
1 ½"	10	10
2"	10	10
2.½"	10	10
3”	5	5
4”	5	5

UPVC Fittings Size

Size Specification

Dimensions of Plumbing Pipes according to ASTM D 1785		Schedule - 40 (Light Duty)		Schedule - 80 (Medium Duty)		Schedule - 120 (Heavy Duty)
Inside Dia (in inch)	Outside Dia (in mm)	Wall thick (in mm)	Pressure Rating (in Bar)	Wall thick (in mm)	Pressure Rating (in Bar)	Pressure Rating (in Bar)	Pressure Rating (in Bar)
½"	21.2	2.8	20.5	3.7	29	4.3	35
¾"	26.6	2.9	16.5	3.7	29	4.3	35
1"	33.3	3.4	15.5	4.5	22	5.1	22
1¼"	42.0	3.6	12.5	4.9	28	5.5	21
1½"	48.1	3.7	11.5	5.1	16	5.7	19
2"	60.2	3.9	9.5	5.5	14	6.4	17
2½"	72.8	5.2	10.5	7.0	15	7.6	16
3"	88.7	5.5	9.0	7.6	13	8.9	15
4"	114.1	6.0	7.5	8.6	11	11.1	15

Key Features

Lead
Free

UV
Resistant

Weather
Proof

Leak Proof
Joints

Pressure
Resistant

Corrosion
Resistant

Chemical
Resistant

No Scaling
No Sediment

UPVC Pipes & Fittings

	Fittings	Pipes
Material	Unplasticized Polyvinyl Chloride (UPVC)	Unplasticized Polyvinyl Chloride (UPVC)
Colour	White	White
Reference Standards	Sch - 80 as per ASTM D - 2467	Sch - 40, 80 & 120 as per ASTM D - 1785
Working Temperature	Upto 60 degree - Continuous Upto - 90 degree - Short Time - upto 3 mins	Upto 60 degree - Continuous Upto - 90 degree - Short Time - upto 3 mins
End Connections	Solvent sockets. For transition joints, fittings with plastic threaded & metal threaded inserts available	Solvent Joint

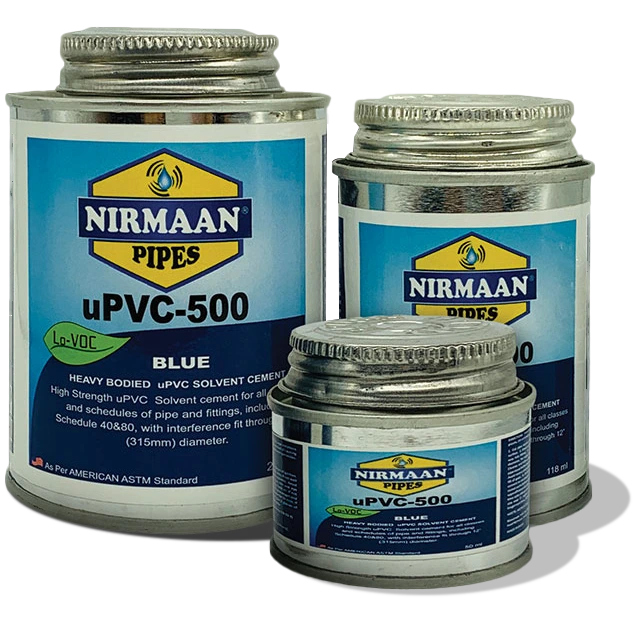

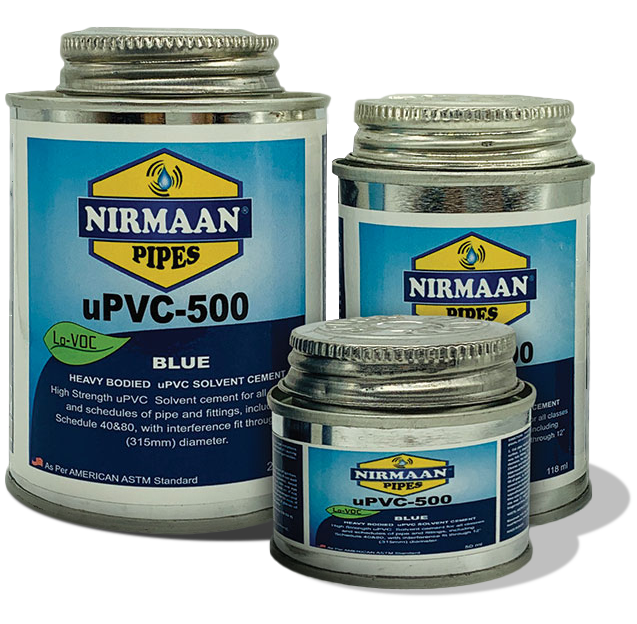

Solvent Cement

Nirmaan UPVC Solvent Cement is used to join UPVC pipes and fittings used for different applications. Our products meet the strength requirements for all our plumbing solutions. They have high adhesive properties and form strong bonds between the surface of PVC pipes and fittings. Nirmaan Solvent Cements can easily withstand high pressure due to the flow of liquids.

Size in ml/Ltr.	Std Packing
50ml	360
100ml	144
250ml	96
500ml	48
1Ltr	24

Applications

Nirmaan Pipes can be used in several applications as mentioned here:

Larger residential complexes

Individual residential units

Commercial buildings

Connect with Us

(Sch 40)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	900	190
¾"	20mm	500	100
1"	25mm	400	90
1 ¼"	32mm	250	50
1 ½"	40mm	175	35
2"	50mm	150	-

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	900	90
¾"	20mm	500	100
1"	25mm	400	80
1 ¼"	32mm	240	48
1 ½"	40mm	150	30
2"	50mm	110	28
2 ½"	65mm	60	-
3"	80mm	40	-
4"	100mm	25	-

(Sch 40)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	600	120
¾"	20mm	400	80
1"	25mm	250	50
1 ¼"	32mm	150	30
1 ½"	40mm	110	22
2"	50mm	63	-

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	600	120
¾"	20mm	400	80
1"	25mm	275	55
1 ¼"	32mm	100	20
1 ½"	40mm	100	20
2"	50mm	75	15
2 ½"	65mm	35	-
3"	80mm	25	-
4"	100mm	15	-

(Sch 40)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	400	80
¾"	20mm	300	60
1"	25mm	175	35
1 ¼"	32mm	110	22
1 ½"	40mm	75	15
2"	50mm	60	-

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	500	100
¾"	20mm	320	64
1"	25mm	175	35
1 ¼"	32mm	75	15
1 ½"	40mm	60	12
2"	50mm	40	8
2 ½"	65mm	28	-
3"	80mm	20	-
4"	100mm	8	-

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	1200	120
¾"	20mm	850	85
1"	25mm	500	100
1 ¼"	32mm	320	64
1 ½"	40mm	240	48
2"	50mm	160	32
2 ½"	65mm	75	15
3"	80mm	60	12
4"	100mm	30	6

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
¾" x ½"	20 mm X 15 mm	650	65

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	1150	115
¾"	20mm	720	72
1"	25mm	450	90
1 ¼"	32mm	260	52
1 ½"	40mm	200	40
2"	50mm	140	28
2 ½"	65mm	60	12
3"	80mm	45	-
4"	100mm	30	6

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	200	40
¾"	20mm	150	30
1"	25mm	125	25
1 ¼"	32mm	100	20
1 ½"	40mm	50	10
2"	50mm	50	10

Size in inch	Sizes in mm	Standard Packing
½”	15	40 X 14
¾"	20	25 X 14
1"	25	15 X 14

Size in inch	Sizes in mm	Standard Packing
½”	15	30 X 12
¾"	20	20 X 14
1"	25	10 X 14

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	300	60
¾" x ½"	20mm X 15mm	225	45
¾"	20mm	175	35
1"	25mm	125	25
1 ¼"	32mm	75	15
1 ½"	40mm	60	12
2"	50mm	40	8

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	350	70
¾” x ½”	20mm X 15mm	300	60
¾”	20mm	230	46
1" x ½”	25mm x 15mm	250	50
1" x ¾"	25mm	150	30
1"	25mm	150	30
1 ¼”	32mm	100	20
1 ½”	40mm	50	10
2"	50mm	30	6

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	200	-
¾"	20mm	120	-
1"	25mm	84	-
1 ¼"	32mm	56	-
1 ½"	40mm	36	-
2"	50mm	24	-

(Sch 80)

Size in inch	Sizes in mm	Standard Packing
½”	15	25 X 16
¾"	20	25 X 10
1"	25	25 X 10
1¼"	32	20 X 80
1½"	40	15 X 80
2"	50	10 X 10

Sizes in inch	Sizes in mm	Standard Packing	Small Std Packing
¾" x ½"	20mm X 15mm	300	60
1" x ½"	25mm X 15mm	200	40
1" x ¾"	25mm X 20mm	200	40
1 ¼" x ½"	32mm X 15mm	125	25
1 ¼" x 1"	32mm X 25mm	120	24
1 ½" x ½"	40mm X 15mm	90	18
1 ½" x ¾"	40mm X 20mm	90	18
1 ½" x 1"	40mm X 25mm	90	18
1 ½" x 1 ¼"	40mm X 32mm	80	16
2" x ½"	50mm X 15mm	50	-
2" x ¾"	50mm X 20mm	50	-
2" x 1"	50mm X 25mm	50	10
2" x 1 ¼"	50mm X 32mm	40	8
2" x 1 ½"	50mm X 40mm	40	8
2 ½" x 2"	65mm X 50mm	30	-
3" x 2"	80mm X 50mm	16	-
3" x 2 ½"	80mm X 65mm	16	-
4" x 2"	100mm X 50mm	8	-
4" x 2 ½"	100mm X 65mm	8	-
4" x 3"	100mm X 80mm	8	-

(Sch 80)

Sizes in inch	Sizes in mm	Standard Packing	Small Std Packing
¾" x ½"	20mm X 15mm	1500	150
1" x ½"	25mm X 15mm	800	80
1" x ¾"	25mm X 20mm	800	80
1 ¼" x ½"	32mm X 15mm	450	90
1 ¼" x ¾"	32mm X 20mm	475	95
1 ¼" x 1"	32mm X 25mm	500	50
1 ½" x ½"	40mm X 15mm	250	50
1 ½" x ¾"	40mm X 20mm	280	56
1 ½" x 1"	40mm X 25mm	300	60
1 ½" x 1 ¼"	40mm X 32mm	400	80
2" x ½"	50mm X 15mm	190	38
2" x ¾"	50mm X 20mm	200	40
2" x 1"	50mm X 25mm	225	45
2" x 1 ¼"	50mm X 32mm	250	50
2" x 1 ½"	50mm X 40mm	240	48

(Sch 80)

Sizes in inch	Sizes in mm	Standard Packing	Small Std Packing
¾" x ½"	20mm X 15mm	550	110
1" x ½"	25mm X 15mm	450	90
1" x ¾"	25mm X 20mm	400	80
1 ¼" x 1"	32mm X 25mm	250	50
1 ½" x 1"	40mm X 25mm	200	40
1 ½" x 1 ¼"	40mm X 32mm	150	30
2" x 1"	50mm X 25mm	150	30
2" x 1 ¼"	50mm X 32mm	130	26
2" x 1 ½"	50mm X 40mm	125	25
2 ½" x 2"	65mm X 50mm	45	9
3" x 2"	80mm X 50mm	45	9
3" x 2 ½"	80mm X 65mm	40	8
4" x 2"	100mm X 50mm	25	5
4" x 2 ½"	100mm X 65mm	25	5
4" x 3"	100mm X 80mm	22	5

(Sch 80)

Sizes in inch	Sizes in mm	Standard Packing	Small Std Packing
¾" x ½"	20 X 15	400	80
1" x ½"	25 X 15	257	55
1” x ¾"	25 X 20	250	50

Size in inch	Size in mm	Standard Packing
¾" x ½"	20 X 15	20 X 18
1" x ½"	25 X 15	20 X 14
1” x ¾"	25 X 20	15 X 14

Sizes in inch	Sizes in mm	Standard Packing	Small Std Packing
¾" x ½"	20 mm X 15 mm	300	60
1" x ½"	25mm X 15mm	200	40
1" x ¾"	25mm X 20mm	200	40
1 ¼" x ½"	32mm X 15mm	125	25
1 ¼" x 1"	32mm X 25mm	120	24
1 ½" x ½"	40mm X 15mm	90	18
1 ½" x ¾"	40mm X 20mm	90	18
1 ½" x 1"	40mm X 25mm	90	18
1 ½" x 1 ¼"	40mm X 32mm	80	16
2" x ½"	50mm X 15mm	50	-
2" x ¾"	50mm X 20mm	50	-
2" x 1"	50mm X 25mm	50	10
2" x 1 ¼"	50mm X 32mm	40	8
2" x 1 ½"	50mm X 40mm	40	8
2 ½" x 2"	65mm X 50mm	30	-
3" x 2"	80mm X 50mm	16	-
3" x 2 ½"	80mm X 65mm	16	-
4" x 2"	100mm X 50mm	8	-
4" x 2 ½"	100mm X 65mm	8	-
4" x 3"	100mm X 80mm	8	-

Size in inch	Size in mm	Standard Packing
¾" x ½"	20 X 15	40 X 14
1" x ½"	25 X 15	25 X 16
1” x ¾"	25 X 20	15 x 16

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	300	60
¾" x ½"	20 mm X 15 mm	225	45
¾"	20 mm	175	35
1"	25mm	125	25
1 ¼"	32mm	75	15
1 ½"	40mm	60	12
2"	50mm	40	8

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	450	90
¾"	20mm	425	85
1"	25mm	260	52
1 ¼"	32mm	90	18
1 ½"	40mm	75	15
2"	50mm	60	12

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	200	40

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	600	120
¾"	20mm	400	80
¾" x ½"	20mm X 15mm	350	70
1"	25mm	250	50
1" x ¾"	25mm X 20mm	200	40

(Sch 80)

Size in inch	Sizes in mm	Standard Packing	Small Std Packing
½"	15mm	2000	200
¾"	20mm	1200	120
1"	25mm	1100	110
1 ¼"	32mm	600	60
1 ½"	40mm	500	100

About

Solutions

Media

Careers

Resources

UPVC Pipes & Fittings

Nirmaan UPVC Pipes meet the high standards of ASTM-D-1785 and work perfectly with Nirmaan UPVC Fittings that meet ASTM-D-2467. These pipes are widely used for carrying water and other liquids in homes, businesses, and factories.

Nirmaan UPVC Pipes

Schedule-40 - Light Duty

Schedule-80 - Heavy Duty

UPVC Fittings Size

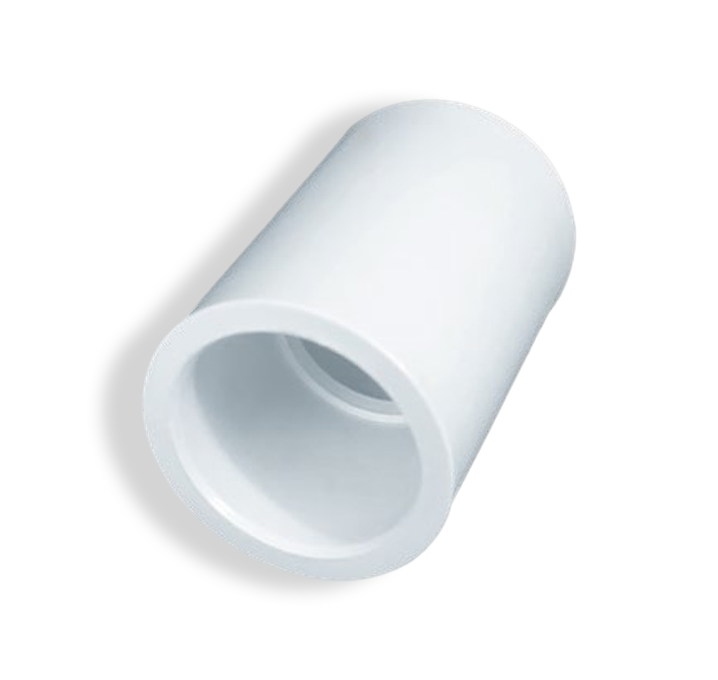

Coupler

Elbow

Tee

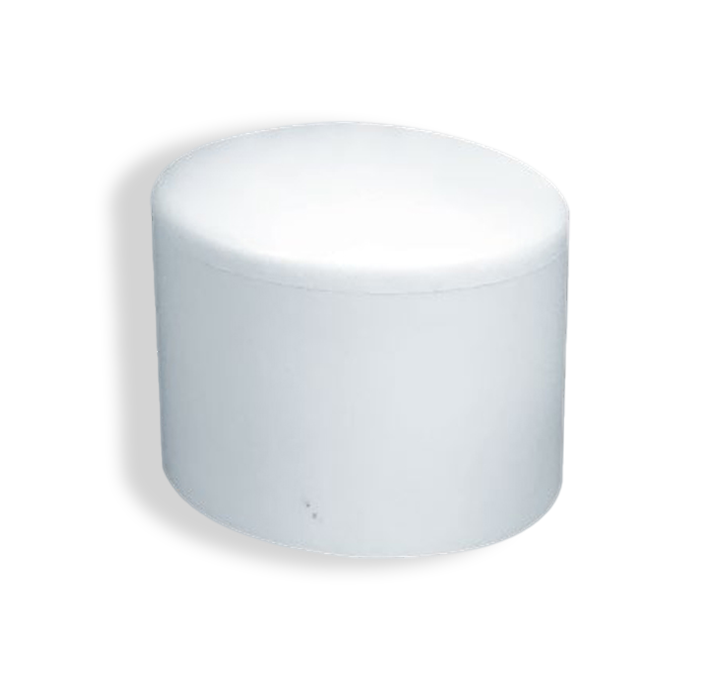

End Cap

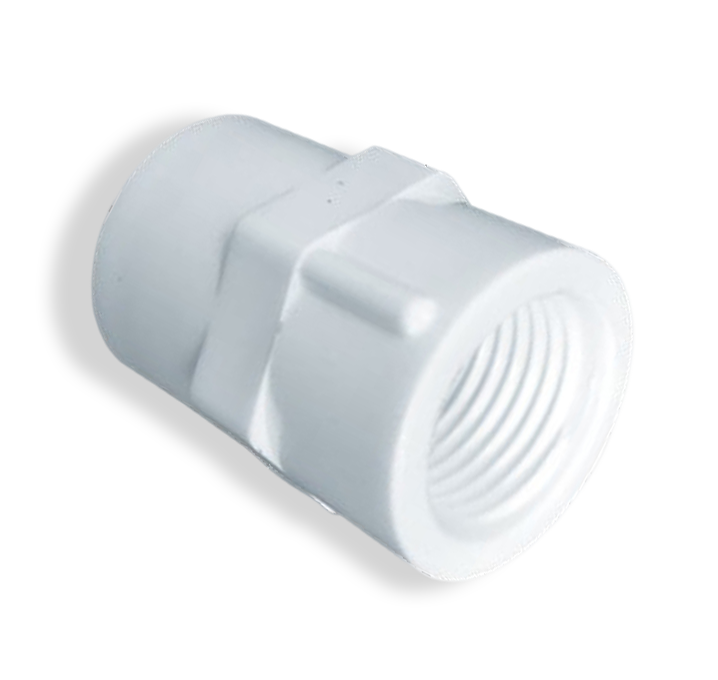

Female Threaded Adaptor

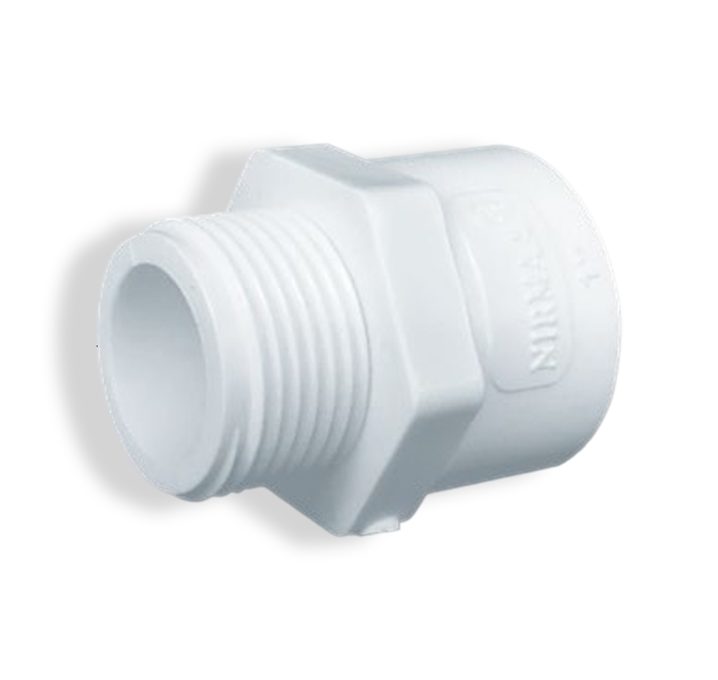

Male Threaded Adaptor

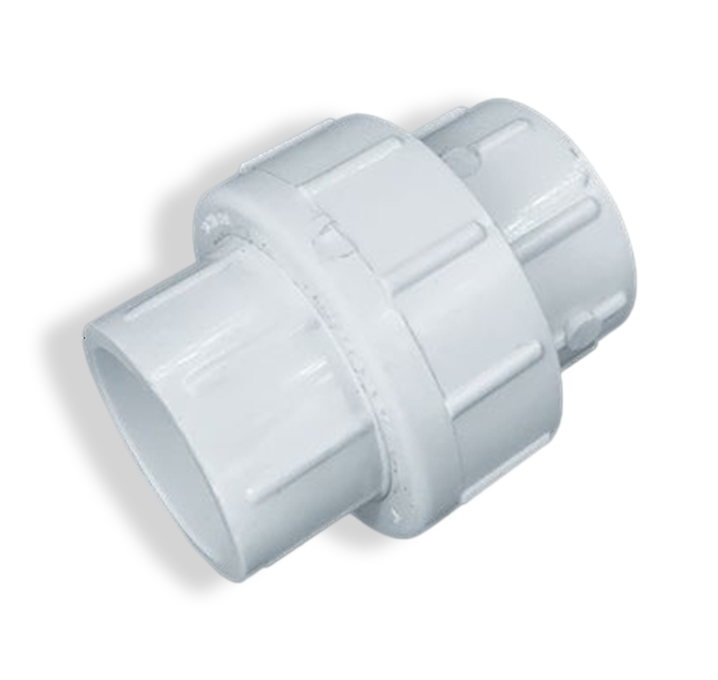

Union

Brass Elbow

Brass Tee

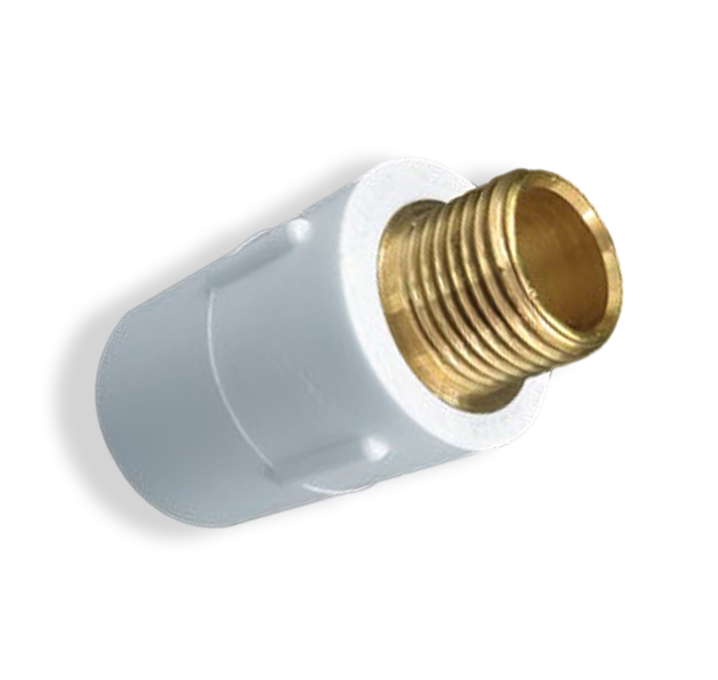

Brass Male Threaded Adaptor

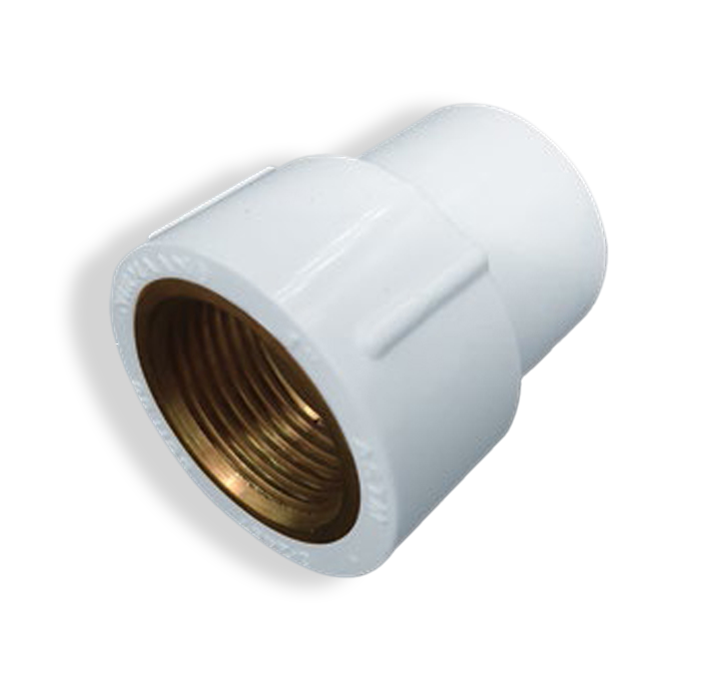

Brass Female Threaded Adaptor

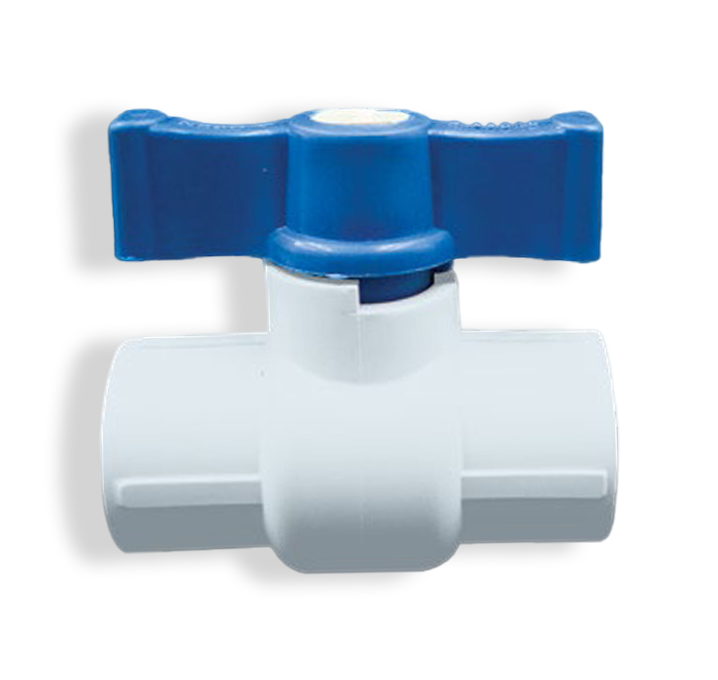

Ball Valve

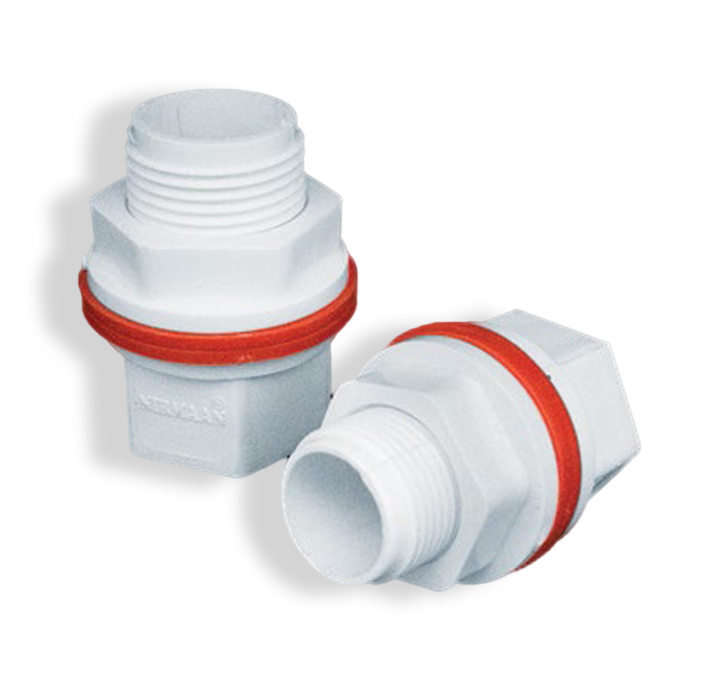

Socket Tank Nipple

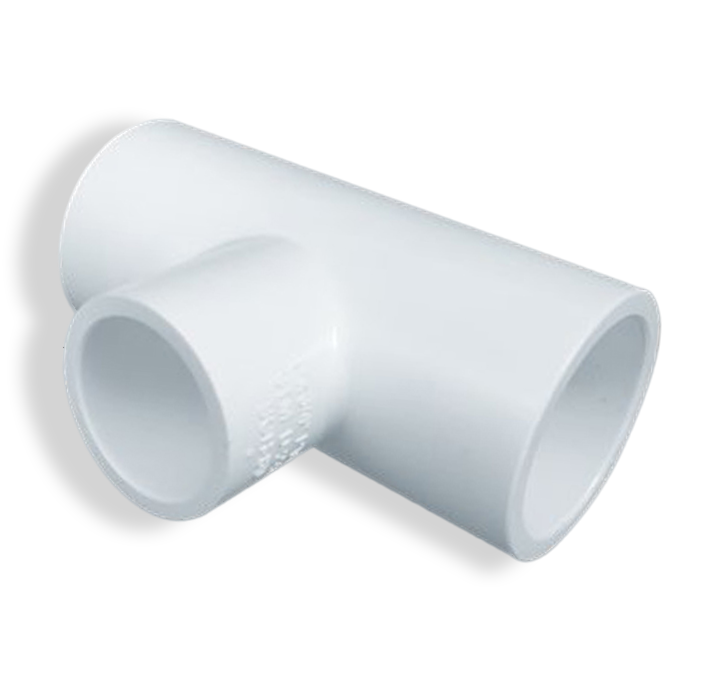

Reducer Tee

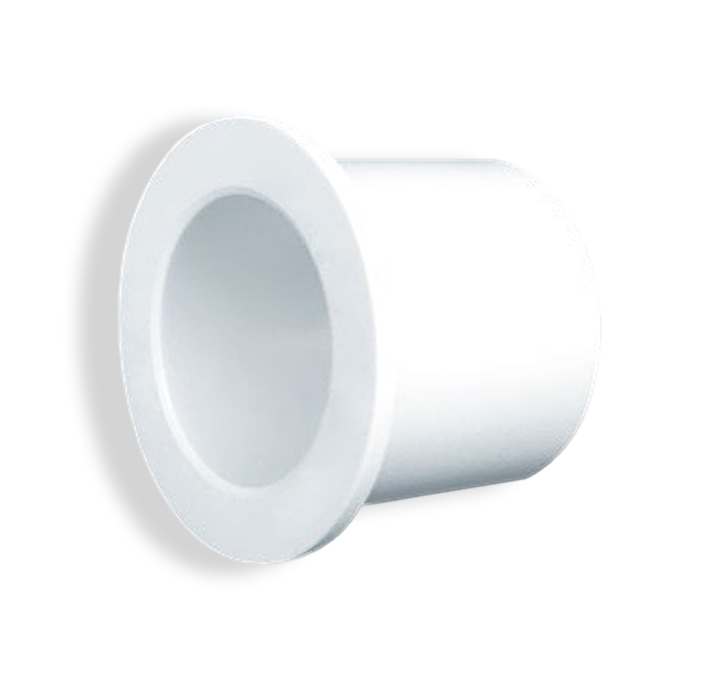

Reducer Bush

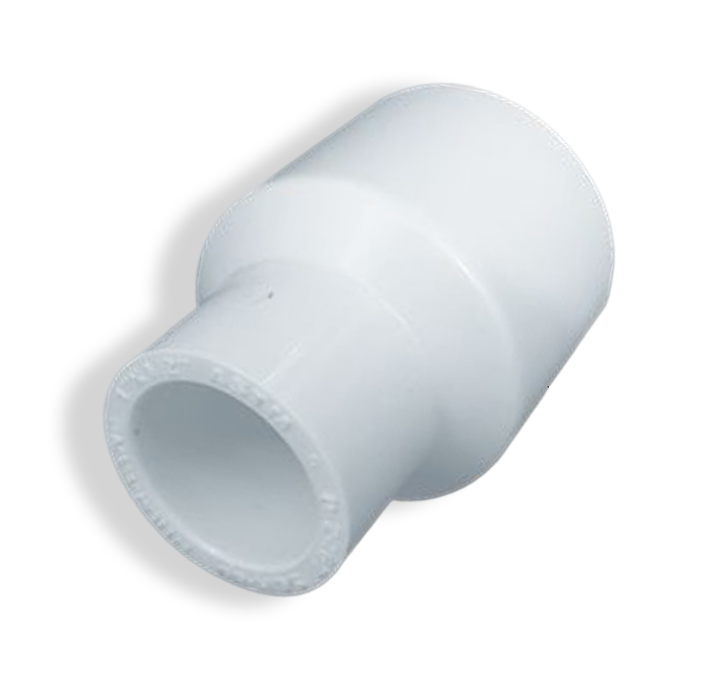

Reducer

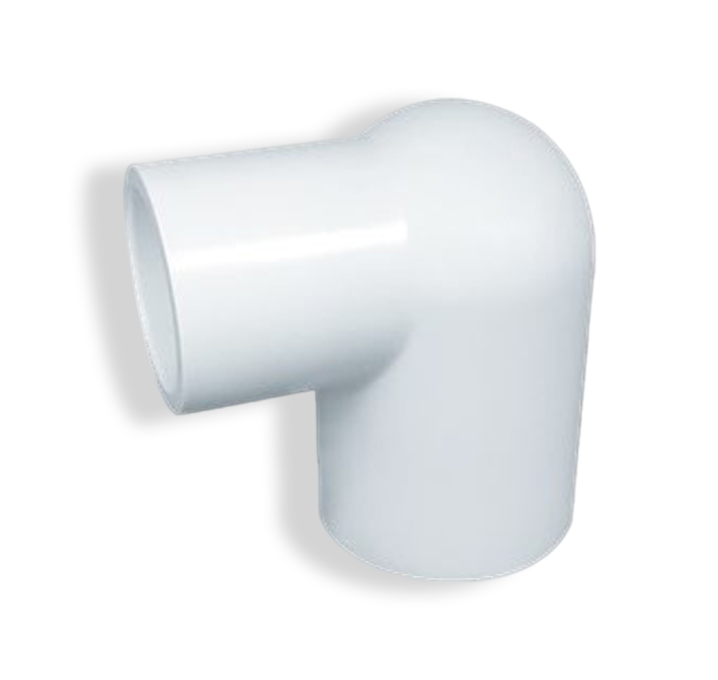

Reducer Elbow

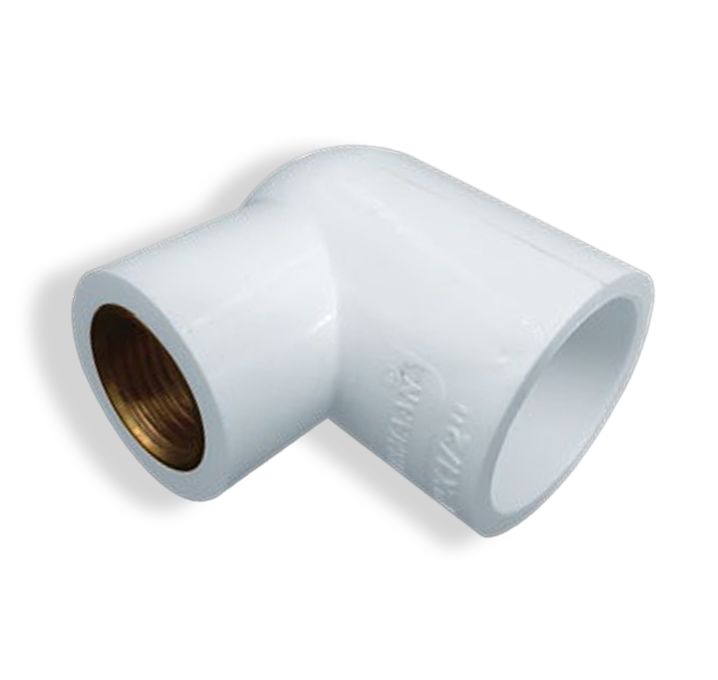

Reducer Brass Elbow

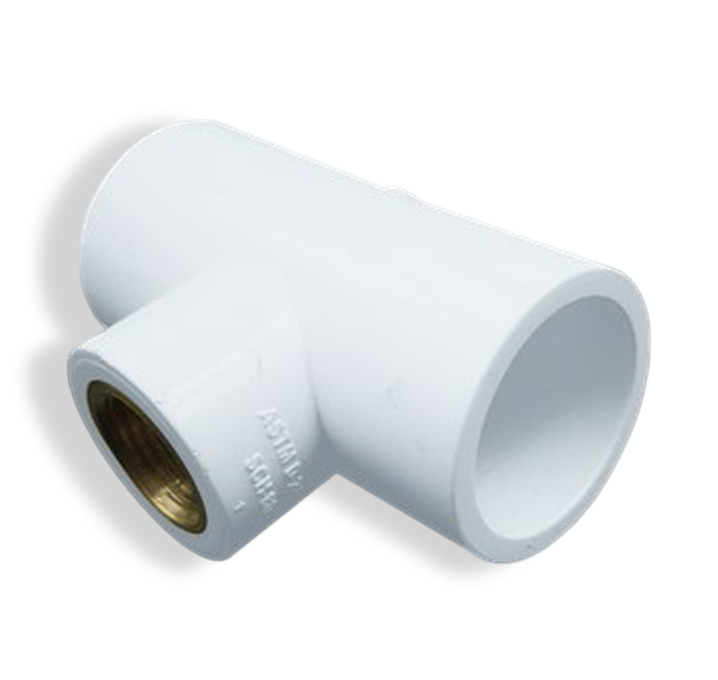

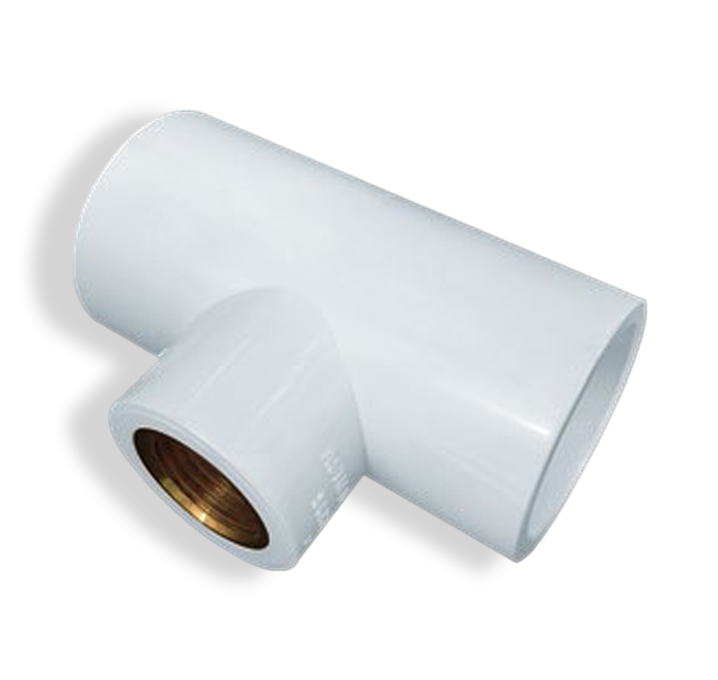

Reducer Brass Tee

Reducer Brass Fta

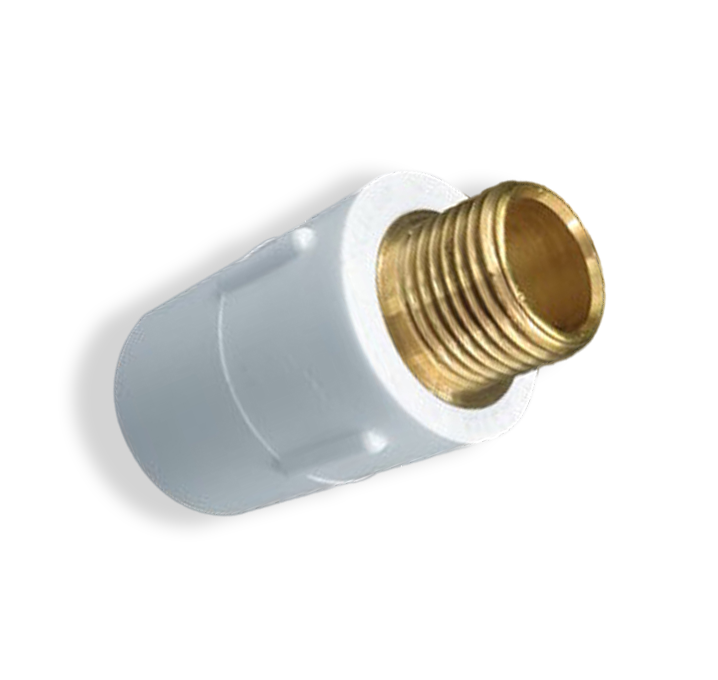

Reducer Brass Mta

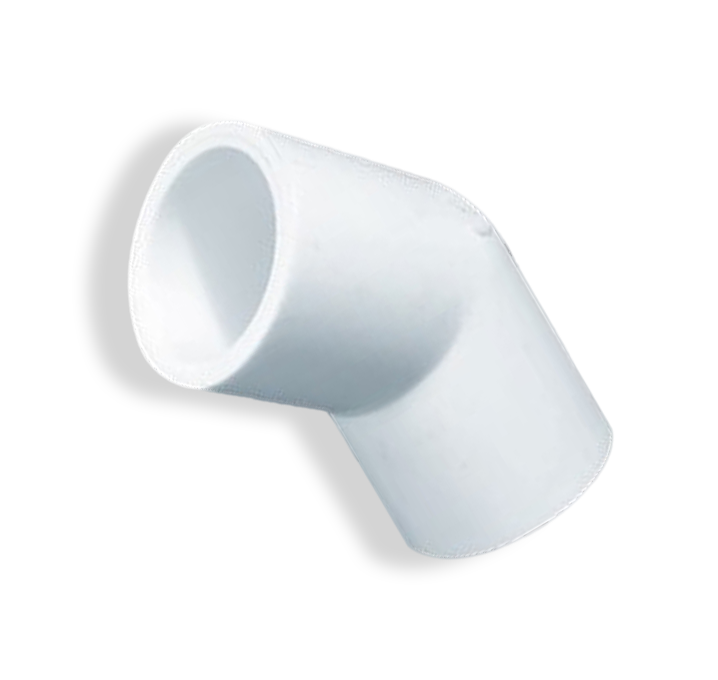

Elbow 45°

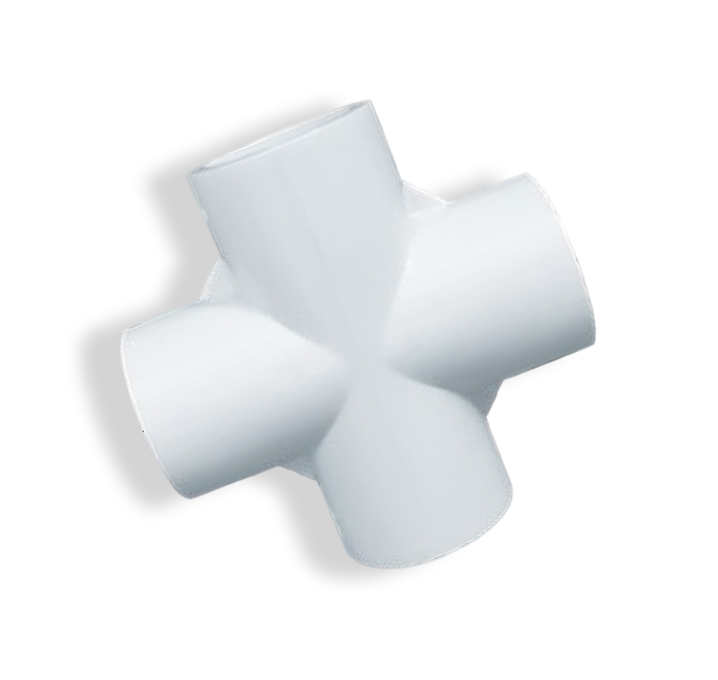

Cross Tee

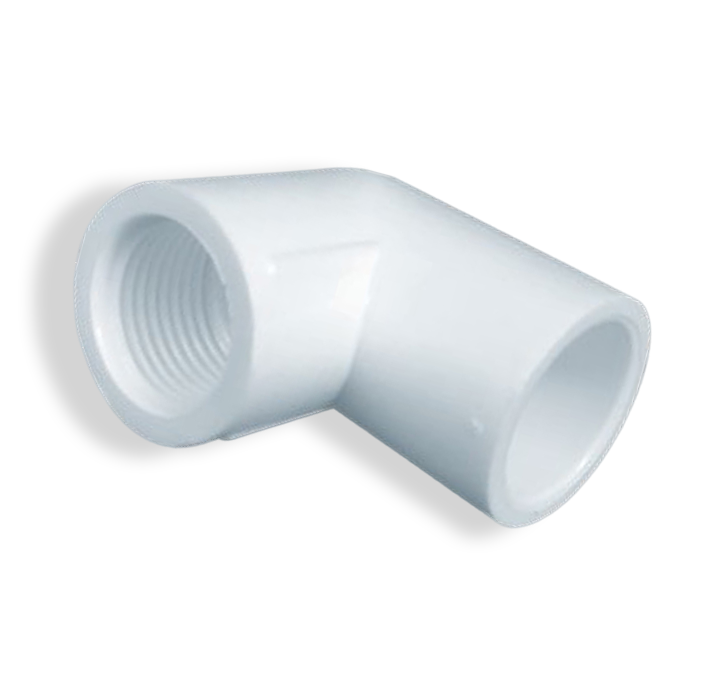

Threaded Elbow

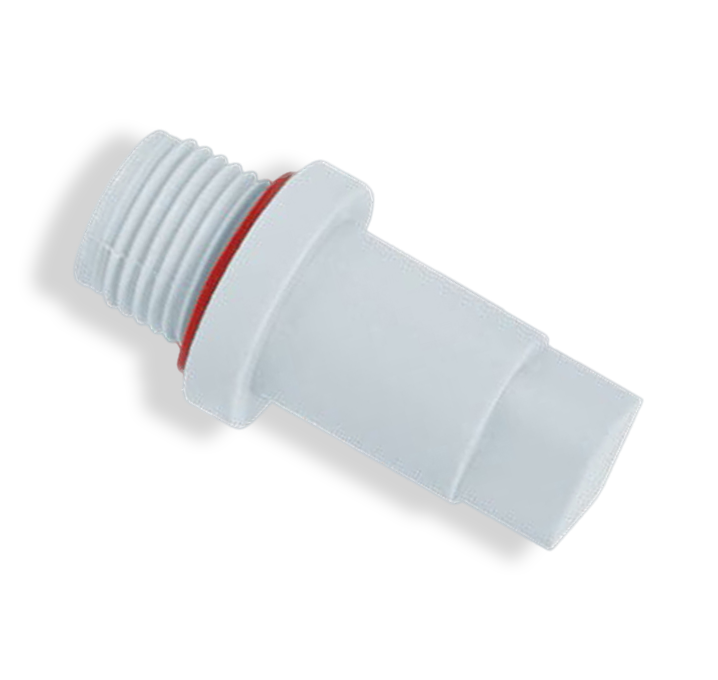

End Plug
