| Nom. Outside Dia.mm | Minimum Wall Thickness in mm | |||||
|---|---|---|---|---|---|---|
| Pressure Rating in kgf/cm2 | ||||||
| 2.5 | 4.0 | 6.0 | 8.0 | 10.0 | 12.5 | |
| 020 | - | - | - | - | 1.1 | 1.4 |
| 025 | - | - | - | 1.2 | 1.4 | 1.7 |
| 032 | - | - | - | 1.5 | 1.8 | 2.2 |
| 040 | - | - | 1.4 | 1.8 | 2.2 | 2.8 |
| 050 | - | - | 1.7 | 2.3 | 2.8 | 3.4 |
| 065 | - | 1.5 | 2.2 | 2.8 | 3.5 | 4.3 |
| 075 | - | 1.8 | 2.6 | 3.4 | 4.2 | 5.1 |
| 090 | 1.3 | 2.1 | 3.1 | 4.0 | 5.0 | 6.1 |
| 110 | 1.6 | 2.5 | 3.7 | 4.9 | 6.1 | 7.5 |
| 125 | 1.8 | 2.9 | 4.3 | 5.6 | 6.9 | 8.5 |
| 140 | 2.0 | 3.2 | 4.8 | 6.3 | 7.7 | 9.5 |
| 160 | 2.3 | 3.7 | 5.4 | 7.2 | 8.8 | 10.9 |
| 180 | 2.6 | 4.2 | 6.1 | 8.0 | 9.9 | 12.2 |
| 225 | 2.5 | 4 | 6 | 8 | 10 | 12.5 |
| 250 | 3.6 | 5.7 | 8.5 | 11.2 | 13.8 | 17 |
| 280 | 4.1 | 6.4 | 9.5 | 12.5 | 15.4 | 19 |
| 315 | 4.6 | 7.2 | 10.7 | 14 | 17.3 | 21.4 |
Nirmaan Grey Pipes, manufactured to IS 4985 / 2000 standards, deliver exceptional strength at competitive costs. Trusted by farmers, government departments, and industries, these versatile pipes excel in agricultural and sanitation applications, safely transporting both potable and non-potable water.
Sizes: Nirmaan Grey UPVC Pipes are manufactured from 20mm to 315mm diameter in all IS standard 4985/2000 pressure rating classes 2.5, 4.0, 6.0, 8.0, 10.0 & 12.5 kgf/cm2
Advanced design with one self-socketed end and one plain end for seamless connections.
50% faster installation compared to traditional plain-ended pipes and couplers.
50% reduction in solvent cement usage for maximum cost efficiency.
Precision-engineered sockets manufactured using sophisticated technology.
50% fewer joints required, dramatically reducing labor costs.

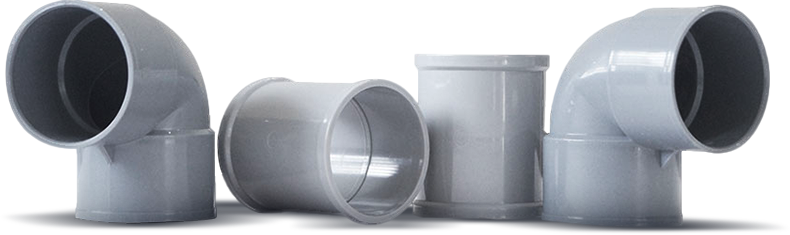

Nirmaan Grey Fittings are manufactured according to IS 10124/1988. We manufacture all types of fabricated fittings like Elbow, Tee, Coupler, End Cap, Tail Piece, Tail Piece with Flange, M.T.A., F.T.A., Service Saddle, Reducer Socket & Reducer Tee
Nirmaan Agriculture Fittings are available from sizes 40 mm to 315 mm
Nirmaan Pipes can be used in several applications as mentioned below:

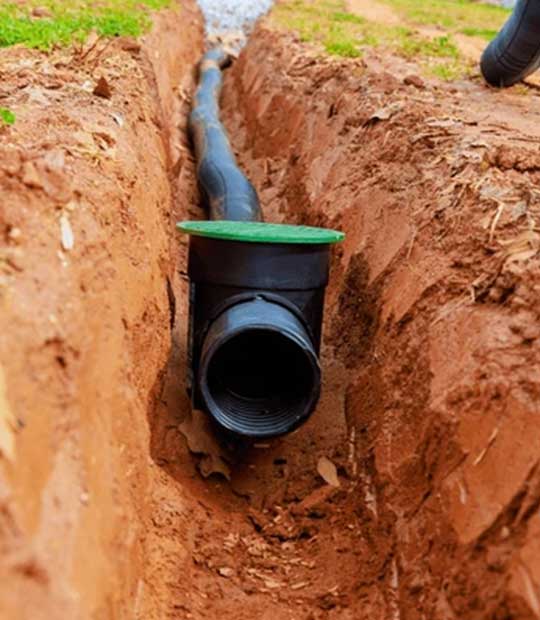

Water mains for potable water supply & sewerage mains for drain lines

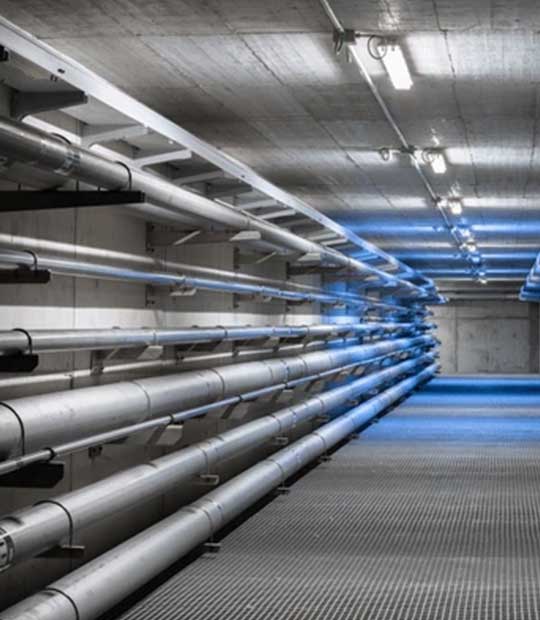

Drainage installations for both domestic & industrial purposes

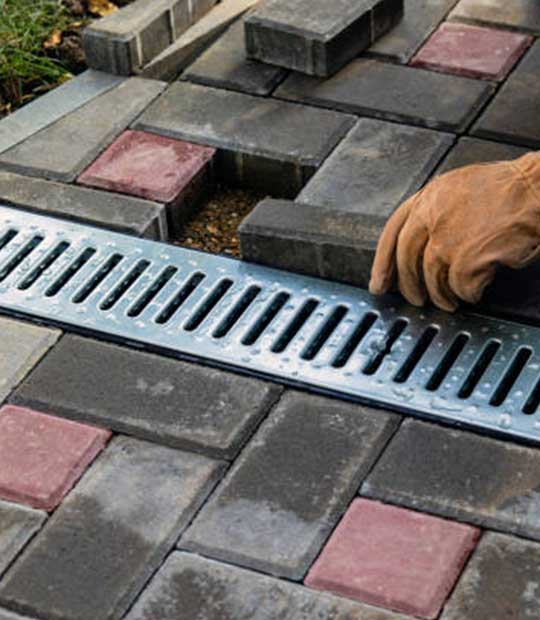

Surface water drainage & greenhouse irrigation systems
